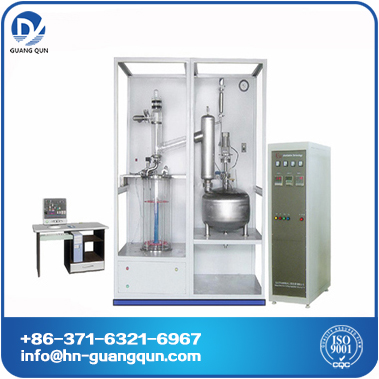

PVD - Pilot Distillation with Capacity of 40 L,Pot still
Pilot Distillation is supplied by Guangqun, It can offer you Pilot Distillation price, If you need Pilot Distillation please contact us.
Email:
info@hn-guangqun.com
Phone:
+86-13838155309
Detailed Product Description
PVD Series（40L）Pilot Distillation Parameter:
1.Brand Name:Heavy Crude Oil Distillation Units
2.Model Number:PVD Series(With Capacity of 40 L, Potstill)
3.Distillate Still Capacity: 40L
4.Total Yield:≥99.6%
5.The Lowest Distillate Pressure: 0.1Torr
6.No LoadResidual Pressure:< 0.05 Torr
7.The Highest Temperature:565℃
8.Temperature Measurement Accuracy:±0.1℃
9.Pressure Measurement Accuracy:±0.02Torr
2.Model Number:PVD Series(With Capacity of 40 L, Potstill)
3.Distillate Still Capacity: 40L
4.Total Yield:≥99.6%
5.The Lowest Distillate Pressure: 0.1Torr
6.No LoadResidual Pressure:< 0.05 Torr
7.The Highest Temperature:565℃
8.Temperature Measurement Accuracy:±0.1℃
9.Pressure Measurement Accuracy:±0.02Torr
PVD Series（40L）Pilot Distillation Features:
1.Self-developed product
2.Reach The National technical standards
3.Prominent performance
4.Full-automatic operation
5.Good-looking appearance
PVD Series（40L）Pilot Distillation Description:
It’s designed according to ASTMD5236 and GB/T17475 Standers, The instrument Is mainly used in heavy hydrocarbon mixture distillation, such as heavy crude oil heavy gas oil and residual oil. And it also could distillate the intermediate oil product(eg. Generated oil from lubricating oil hydrogenation).This units are auxiliaries of the TBP Distillation System, The two units work together to accomplish the whole flow distillation for the crude oil, then obtain the fractions content and calculate the yield on the crude oil based on the experiment data.
Introduction about our factory:
Why choose Us?
PVD Series（40L）Pilot Distillation Description:
It’s designed according to ASTMD5236 and GB/T17475 Standers, The instrument Is mainly used in heavy hydrocarbon mixture distillation, such as heavy crude oil heavy gas oil and residual oil. And it also could distillate the intermediate oil product(eg. Generated oil from lubricating oil hydrogenation).This units are auxiliaries of the TBP Distillation System, The two units work together to accomplish the whole flow distillation for the crude oil, then obtain the fractions content and calculate the yield on the crude oil based on the experiment data.
Introduction about our factory:
Why choose Us?
Our Competitive Advantage:
1.More than 10 years of Exporting experience
2.Our products are Self-developed and can reach Intl Standard
3.Strong technical Team with skilled experts from RIPP, and we can provide professional Guide on Crude Oil Evaluation and oil product analysis
4.Competitive Price In Intl Market
5.Experienced Engineer for oversea installation
