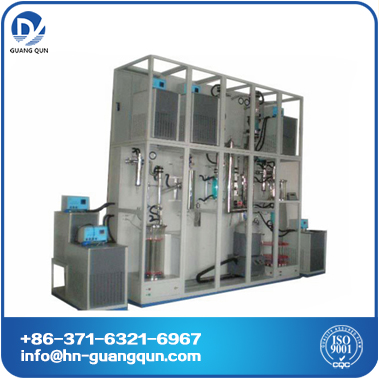

DIST-AV - Fully TBP Distillation instrument with ASTM D2892&5236 /2~150L
Crude Oil Distillation is supplied by Guangqun, It can offer you Crude Oil Distillation price, If you need Crude Oil Distillation pleas contact us.
Email:
info@hn-guangqun.com
Phone:
+86-13838155309
Detailed Product Description
TBP Distillation instrument Technical Parameter:
1.Brand Name:Completely TBP Distillation Units
2.Model Number:DIST-AV-DW-B
3.Distillate Still Capacity:6-30L
4.Theoretical Plate No.: 14-18
5.Reflux Ratio: 5:1 adjustable
6.Total Yield:≥99.6%
7.The Highest Temperature: 400℃(ASTMD2892) 565℃(ASTM D5236)
8.Cutting Point Temperature: Preset as Determination
9.Temperature Measurement Accuracy:±0.1℃
10.Pressure Measurement Accuracy:± 0.02 Torr
Also we can customized Special Instrument according to customers requirements.
TBP Distillation instrument Features:
1.Self-developed product
2.Reach The National technical standards
3.Prominent performance
4.Full-automatic operation
5.Good-looking appearance
2.Reach The National technical standards
3.Prominent performance
4.Full-automatic operation
5.Good-looking appearance

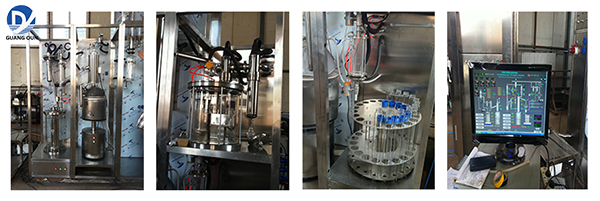

TBP Distillation instrument Description:
It’s according to ASTMD2892 and ASTMD5236 Standards, and is an ideal instrument for cutting crude oil and then making crude assay .The system use hard glass distillate column with high vacuum silver plating and the glass condenser with grade temperature and also use the glass fraction receiver, The system including the online balance for weigh the fraction and online dewater system for crude, All these make the whole instrument looks like clean and tidy. This units is full automatic operating mode.

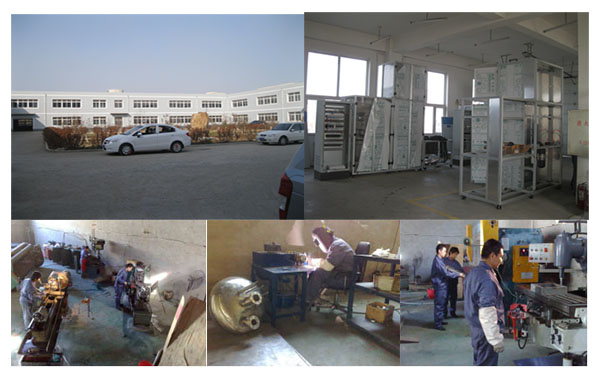

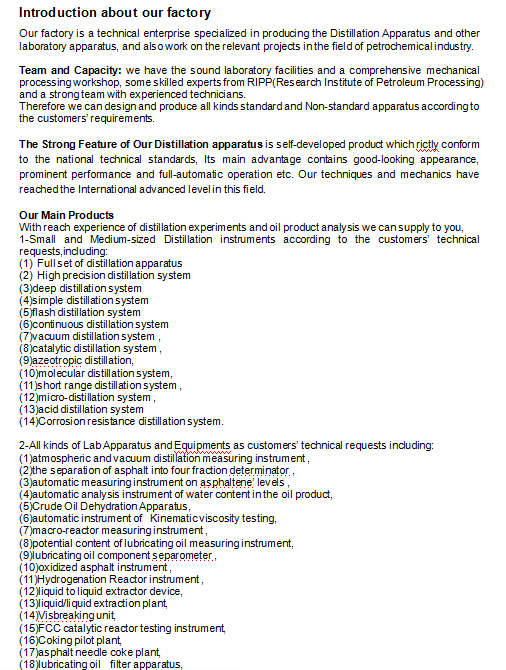

Introduction about our factory:
Why choose Us?
Our Competitive Advantage:
1.More than 10 years of Exporting experience
2.Our products are Self-developed and can reach Intl Standard
3.Strong technical Team with skilled experts from RIPP, and we can provide professional Guide on Crude Oil Evaluation and oil product analysis
4.Competitive Price In Intl Market
5.Experienced Engineer for oversea installation
