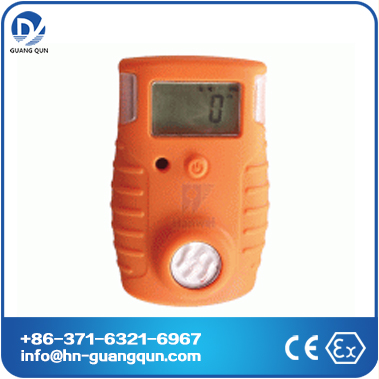

BX171 single gas detector durable China Largest Factory





1.Technical Parameter of BX171 Portable Single Gas Detector ATEX approved

Model:BX171

Detecting gas:

Target gas  Detecting range First alarm level Second alarm level TWA level STEL level

H₂S 0-100ppm 10ppm 15ppm 10ppm 15ppm

CO 0-1000ppm 35ppm 200ppm 35ppm 200ppm

CO 0-2000ppm 35ppm 200ppm 35ppm 200ppm

O₂ 0-30%vol 19.5%vol 23.5%vol - -

Detection method: Natural diffusion

Sensor: Electrochemical sensor

Indication error: ≤±5% F.S

Response time: ＜30s

Working condition Temperature: -20℃～55℃

Humidity: ＜95%RH non dews

Power supply: DC3V CR123A Lithium battery

Sensor life: 2 years

Protection grade: IP66

Dimension l×b×h mm: 91×58×34

Weight: less than 100g



2.Features of BX171 Portable Single Gas Detector ATEX approved

ATEX approved

Intrinsically safe

Low power Consumption

IP66/Waterproof and dustproof

Confidence Beep

Two alarm level

STEL alarm &TWA alarm

Visual/audible/vibrating alarm

Confidence beep

Low battery alert



3.Product Description of BX171 Portable Single Gas Detector ATEX approved

BX171 is a portable gas detector which is mainly intended for individual use when entering into a confined space or when working in an environment where dangerous gases may exist and harm to personal safety. It is normally clipped on belt, lapel or breast pocket. With the features of lower consumption, good reliability, firm configuration, small size, protection grade IP66, it can be widely used in the oil field, chemical plant, mining, environmental protection, city construction etc.
