AT309 commercial coin operated breath alcohol analyzer maker





1.Technical Parameter of AT309 Stand-alone Alcohol Checker

Model:AT309

Sensor type: Electrochemical (fuel cell) alcohol sensor, Module changeable

Test Range : 0.000~2.000mg/l(0.400%B.A.C; 4.000‰B.A.C; 4.000g/l;)

Pass level: 0.090mg/L (could be modified)

Fail level: 0.250mg/L (could be modified)

Accuracy: +/-0.005@0.05BAC%

Work temperature: 0°C~50°C

Power:AC110/220VDimension

Work humidity: less than 95%RH (No Dews)

Battery: 2×AA NiMH batteries, rating capacity: 2.1AH

Indication manner: mg/l,mg/100ml,g/l ,%BAC,‰BAC optional

Coin for single time: 0—15 (For 0, the tester can be tested without coin)

Coin diameter: 20mm – 28mm

Coin thickness: 1.2mm – 2.5mm

Coins Capacity: about 200 pieces

Straw capacity: 200pcs(less than 7mm)

Breath sampling time: about 5 seconds continuous breath

Dimension l×b×h(mm): 250×105×400

Package:Standard:Carton packing for each piece. 1pc per carton, 9.00Kgs per carton



2.Features of AT309 Stand-alone Alcohol Checker

Coin operated

Other language panel offered

Large lighting block to indicate the operating procedure on the panel

Used by disposable straw

Audio and light warning method

Test result with 4 digits display



3.Product Description of AT309 Stand-alone Alcohol Checker

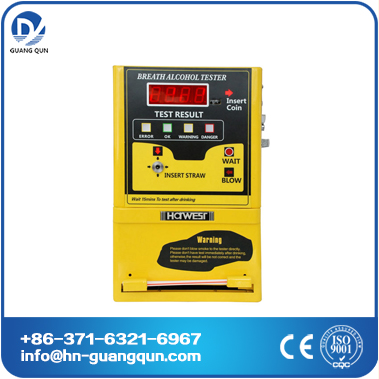

AT309 is a coin-operated and wall-mount breath alcohol tester which is suitable for public use in bars, restaurants, nightclubs, big companies or anywhere alcohol is consumed. Fuel-cell sensor enables police-grade accuracy and user-friendly operation process ensures users to do their own alcohol tests conveniently. With absolutely no inventory to maintain and its competitive price with reliable performance, it is so easy to make a profitable coin-operated vending business.
