Van Veen Grab 2500 cm²

Van Veen Grab 2500 cm² Sediment Sampler for collecting bottom sediments for biological, hydrological and environmental studies. The bottom sampler is up to ISO standard .

Email: info@hn-guangqun.com
Phone: +86-13838155309

Live Chat Leave Message

Detailed Product Description

Van Veen Grab Application
Sediment Sampler for collecting bottom sediments for biological, hydrological and environmental studies.
Van Veen Grab General

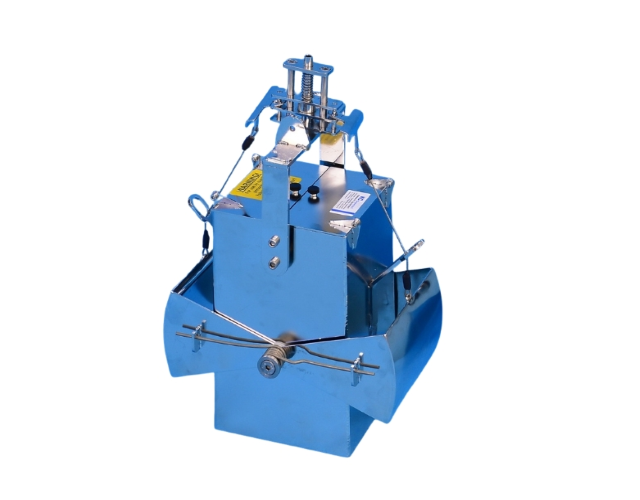

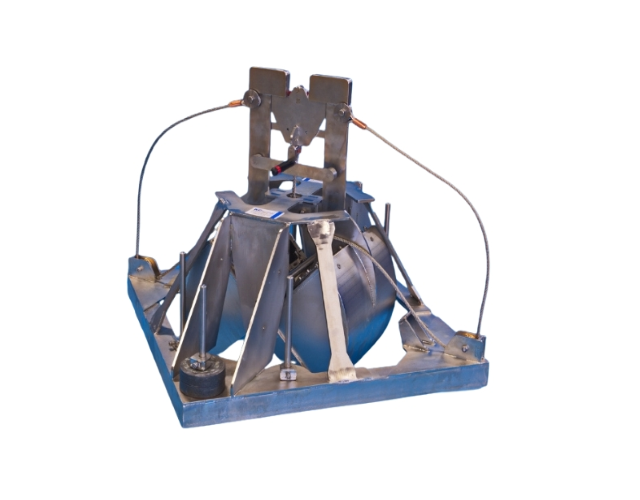

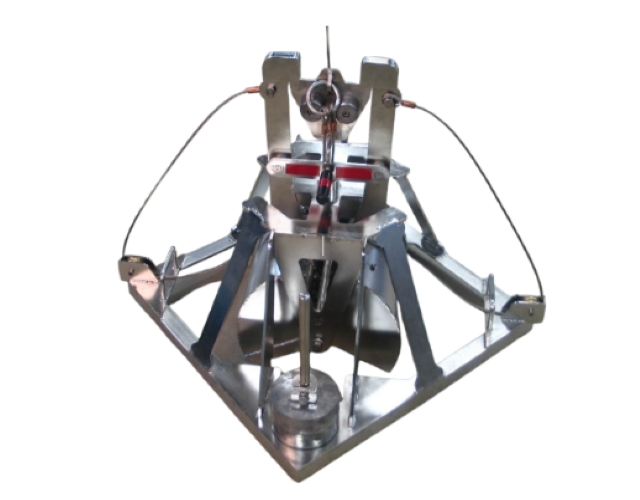

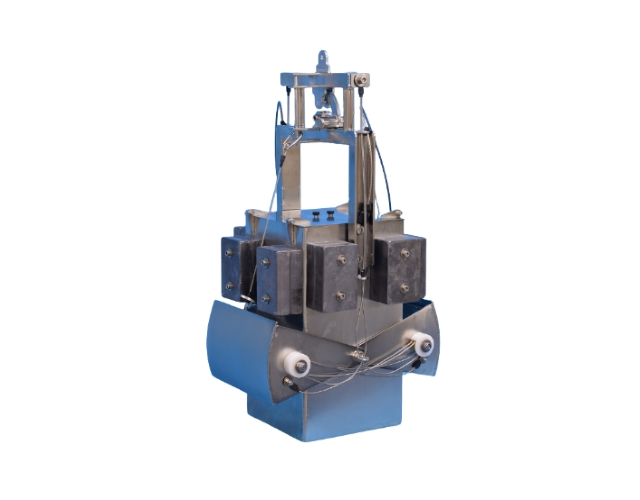

The bottom sampler grab is based on the Van Veen design. It is made of AISI 316 stainless steel and the surface is electro polished. The grab itself is manufactured from 8 mm plate. Model 12.410 has 4 lids with stainless steel mesh and rubber mats to reduce the shock wave, as per Norwegian ISO standard (16665 Water quality - Guidelines for quantitative sampling and sample processing for of marine soft-bottom macro fauna). All models are equipped with either 2 or 4 lids so you can remove an undisturbed part of the sample without emptying the whole sample.

Van Veen Grab specification

Ordering No.	12.410
Sample area:	2500 cm².
Sample volume:	82 L.
Materials:	AISI 316 stainless steel. The grab = 8 mm The arms are manufactured from square tube, 60 x 60 x 4 mm with 12 mm reinforcements.
Lead weights, (13.320), optional:	4 x 12,5 kg.
Recommended wire:	6 - 8 mm.
Dimensions:	Open: L x W x H: 245 x 55 x 63 cm. Closed: L x W x H: 90 x 54 x 157 cm.
Lids:	4 lids, All lids have the stainless steel mesh and the rubber flaps.
Net. weight:	125 kg.
Pallet for shipping:	L x W x H: 120 x 80 x 190 cm. Gross weight 285 kg incl. 4 lead weights.
