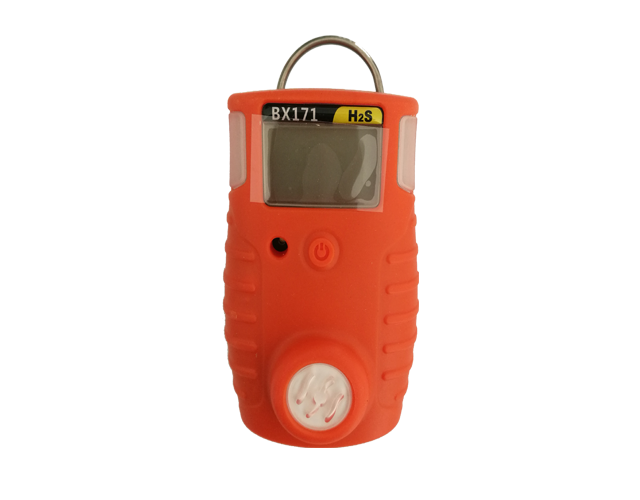

BX171 Portable Singel Gas Detector for Industrial Gas

BX171 Portable Singel Gas Detector for Industrial Gas

BX 171 is a portable single gas detection instrument, which can detect the presence of abnormal harmful and combustible gas in the industrial related environment, so as to ensure the personal safety of the staff.

Email: info@hn-guangqun.com
Phone: +86-13838155309

Live Chat    Leave Message

Detailed Product Description

Portable Gas Detector Description
BX 171 is a disposable portable single gas detector that can detect H2S, CO and O2 with small size and firm configuration. It is mainly intended for individual used to detect a confined space or the working environment where dangerous gases existed and harm to personal safety. It is normally clipped on belt, lapel or breast pocket.
It can be widely used in the oil and gas industries, steelworks, chemical plant, mining,marine, power plants, sewage treatment plant, environmental protection, city construction, labs etc.

Portable Gas Detector Detection Method
Natural diffusion is to use natural air flow to slowly flow the gas into the instrument for detection as the air flows freely, so as to obtain the results. Natural diffusion can accurately check whether the air contains toxic and harmful substances in real time. It is generally used in open places, such as open workshops. This method is affected by the detection environment, such as ambient temperature, wind speed, etc.


Portable Gas Detector Specifications

Measuring gas
H2
CO
CO
O2
Detecting range
0-100ppm
0-1000ppm
0-2000ppm
0-30%vol
First alarm level
10ppm
35ppm
35ppm
19.5%vol
Second alarm level
15ppm
200ppm
200ppm
23.5%vol
TWA level 10ppm
35ppm
35ppm
-
-
STEL level 15ppm
200ppm
200ppm
-
-
Sensor type
Electrochemical sensor
Sampling method
Natural diffusion
Working temperature
-20℃~55℃
Working humidity
<95%RH (no dews)
Accuracy
±5% FS
Response time
T90<30s
Alarm sound
≥80dB @ 1m
Power source
DC3V CR 123A Lithium battery
Sensor life
2 years
Protection degree
IP66/Waterproof and dustproof
Explosion-proof grade
Exia Ⅱ CT4
Dimension
91mm×58mm×34mm
Weight
About 130g
