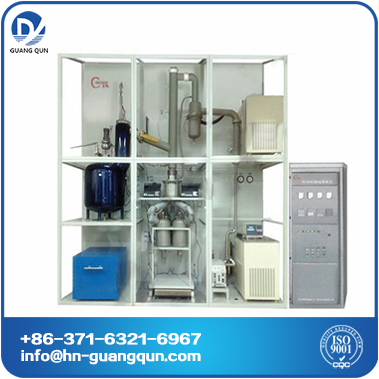

DIST-V - TBP Distillation instrument with ASTM D5236 /6~80L
Crude oil distillation unit is supplied by Guangqun, It can offer you crude assay price, If you need crude distillation please contact us.
Email:
info@hn-guangqun.com
Phone:
+86-13838155309
Detailed Product Description
ASTM-D 5236 TBP Distillation instrument Parameter:
1.Brand Name:Crude Oil Distillation
2.Model Number:DIST-V Series- ASTM D5236
3.Distillate Still Capacity: 2-20L
4.Total Yield:≥99.6%
5.The Lowest Distillate Pressure:0.1Torr
6.No Charge Pressure:< 0.05 Torr
7.The Highest Temperature:565℃
8.Repeatability Error of Cumulative Yield :<1％
9.Temperature Measurement Accuracy:±0.1℃
10.Pressure Measurement Accuracy:±0.02Torr
2.Model Number:DIST-V Series- ASTM D5236
3.Distillate Still Capacity: 2-20L
4.Total Yield:≥99.6%
5.The Lowest Distillate Pressure:0.1Torr
6.No Charge Pressure:< 0.05 Torr
7.The Highest Temperature:565℃
8.Repeatability Error of Cumulative Yield :<1％
9.Temperature Measurement Accuracy:±0.1℃
10.Pressure Measurement Accuracy:±0.02Torr
ASTM-D 5236 TBP Distillation instrument Features:
1.Self-developed product
2.Reach The National technical standards
3.Prominent performance
4.Full-automatic operation
5.Good-looking appearance
ASTM-D 5236 TBP Distillation instrument Description:
It's according to ASTM D5236Standers, The instrument is mainly used in heavy hydrocarbon mixture distillation,such as heavy crude oil, VGO and residual oil. And it also could distillate the intermediate oil product (eg. generated oil from lubricating oil hydrogenation).This units are auxiliaries of the TBP Distillation System, The two units work together to accomplish the whole flow distillation for the crude oil, Then obtain the fractions content and calculate the yield on the crude oil based on the experiment data
Introduction about our factory:
Why choose Us?
ASTM-D 5236 TBP Distillation instrument Description:
It's according to ASTM D5236Standers, The instrument is mainly used in heavy hydrocarbon mixture distillation,such as heavy crude oil, VGO and residual oil. And it also could distillate the intermediate oil product (eg. generated oil from lubricating oil hydrogenation).This units are auxiliaries of the TBP Distillation System, The two units work together to accomplish the whole flow distillation for the crude oil, Then obtain the fractions content and calculate the yield on the crude oil based on the experiment data
Introduction about our factory:
Why choose Us?
Our Competitive Advantage:
1.More than 10 years of Exporting experience
2.Our products are Self-developed and can reach Intl Standard
3.Strong technical Team with skilled experts from RIPP, and we can provide professional Guide on Crude Oil Evaluation and oil product analysis
4.Competitive Price In Intl Market
5.Experienced Engineer for oversea installation
