Dräger Gas Detection Devices
2016-03-31
Dräger is a leading international company in the fields of medical and safety technology.
Founded in Lübeck in 1889, Dräger has grown into a worldwide, DAX-listed enterprise in its fifth generation as a family-run business.
The long-term success is predicated on a value-oriented corporate culture with four central strengths: close collaboration with customers,
the expertise of employees, continuous innovation and outstanding quality.
1-Dräger Short-term Tubes Tried and tested a million times: Worldwide, the Dräger Short-term Tubes have proven to be a very cost-effective and reliable method for the measurement of gases. Decreasing occupational exposure values, special customer requirements and new legal regulations made it necessary to develop even more sensitive Dräger-Tubes.
Benefits
(1)Quick and targeted measurements For spot measurement more than 500 different gases can be detected. The measurement usually takes between 5 seconds and 15 minutes. Furthermore, the easy-to-use Dräger-Tubes have already been calibrated and form a complementary unit with the Dräger-Tube pumps.
(2)Easy handling The Short-term Tubes are used either manually with the Dräger-Tube pump accuro or automatically with the Dräger X-act 5000. The results can then be read directly at the end of the measurement process.
(3)Fields of application 1.air examinations at the workplace in the range of legal limit values
2.technical gas analysis in the areas of emission concentrations / immission concentrations
3.measurements of compressed air / compressed gases

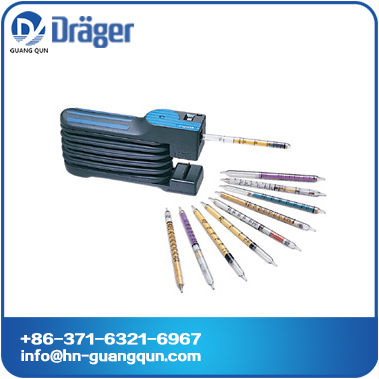

(4)Flexible use A large number of different gases and vapors can be measured by the Short-term Tubes. These tubes are used e.g. for the determination of concentration peaks, the measurement of exposures in the inhalation area, the determination of possible leakages as well as for the analysis of air in sewers, shafts, tanks or other confined spaces. 2-Dräger-Tube pump accuro Fast measurement with one hand: The Dräger-Tube pump accuro allows you to use the established Dräger-Tubes to take measurements under extreme conditions. The easy-to-use Dräger-Tubes have already been calibrated and form a perfect unit with the Dräger-Tube pump.
Benefits
(1)Mobile spot measurement This manual pump is used for spot measurements such as the detection of concentration peaks, confined space entry, worst-case scenarios etc.
(2)Functional bellows pump The Dräger-Tube pump accuro draws in 100 ml per stroke. When measuring, the pump body (bellows) is pressed together completely. The exhaust valve is closed during the opening phase of the bellows so that the gas sample flows through the connected Dräger-Tube into the pump. After the complete opening of the pump body into its original position the suction process is finished. The end of stroke is visible by a pressure-controlled end of stroke indication, located in the pump head.
(3)Sampling During the sampling process the substances to be evaluated are firstly accumulated on a suitable carrier material, e.g. activated charcoal, silica gel and so on. The air to be evaluated is thereby drawn over the respective material - with a predefined flow rate and duration. Afterwards, the substances that have accumulated on the carrier material through adsorption or chemisorption are examined qualitatively and quantitatively in the laboratory using instrumental analysis such as gas chromatography.
(4)One-handed operation Frequently, measurements need to take place under extreme conditions, e.g. on ladders, in shafts or when wearing heavy breathing protection.
The Dräger-Tube pump accuro can easily be operated with one hand and enables a reliable measurement also in difficult-to-access places.
