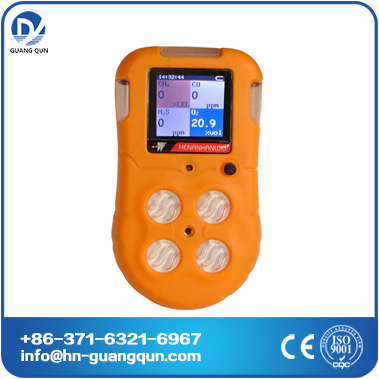

BX616 multi gas gas monitor accurate Reliable factory





1.Technical Parameter of BX616 Portable 4-gas detector

Gas sampling method: natural diffusion

Gas sensor type: catalytic (for combustible gas) and electrochemical (for H2S, CO and O2)

Detecting gas: combustible gas, H2S, CO, O2

Accuracy: ≤±5%FS

Response time: ≤30s

Indication: LCD displays real-time and system status, LED, audio and vibration alert for gas leakage, fault and low voltage

Working environment: -20 to 50°C, 95% RH (no dew)

Power source: 3.7V DC Rechargeable Li-on battery, 1,800Ah

Charging time: 4h-6h

Working time: ≥8h continuously (without alarming)

Gas sensor life: 2 years

Explosion-proof grade: ExiallCT3

Protection grade: IP66

Weight: 220g

Dimensions: 120 x 68 x 30mm
Gas           Range              Low alarm        High alarm       TWA       STEL

LEL           0-100%LEL     20%LEL            50%LEL

H2S          0-100ppm       10ppm               15ppm             10ppm    15ppm

CO            0-1000ppm     35ppm               200ppm           35ppm     200ppm

O2             0-30%vol 1      9.5%vol              23.5%vol





2.Features of BX616 Portable 4-gas detector

Intrinsically safe

100,000 detected records including peak value

Calibration point adjustable

Two alarm level for each sensor channel

STEL&TWA alarm for toxic gases

Visual/audible/vibrating alarm

Self protection against high concentration combustible gas

Low battery alert

Confidence beep

Data uploading

Password management

Self-test when power on

Self-diagnostic and self correction function



3.Product Description of BX616 Portable 4-gas detector

BX616 portable multi-gas detector could detect combustible gas, O2 and other 2 kinds of toxic gases simultaneously.It is widely used in the area where explosion-proof is required or toxic gas leaks, like underground channels or mining industry, so as to protect the workers’ life and avoid damage on the relevant equipment.
